PCI-E to M.2 NVME adapter M-KEY SAVIO AK-41
SAVIO AK-41 PCI-E to M.2 NVME Adapter M-KEY
Specifications
- Model: AK-41
- Type: Expansion card, PCI-E to M.2 NVME Adapter M-KEY
- Data transfer rate (max): 5 Gbit/s
- Expansion card standard: PCIe 3.0
- Expansion card standard: PCIe 3.0
- Host interface: PCI
- Internal: Y
- Output interface: M.2
- Weight: 0.024 kg
- Height: 8 mm
- Width: 120 mm
- Depth: 80 mm
- Code: SAVAK-41
- EAN: 5901986045793

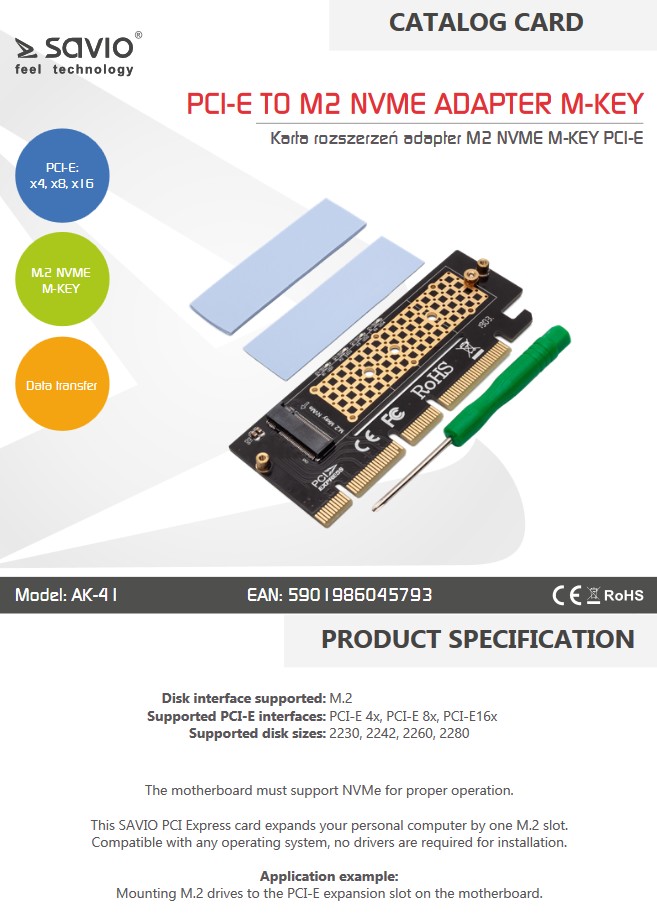

M.2 disk interface supported

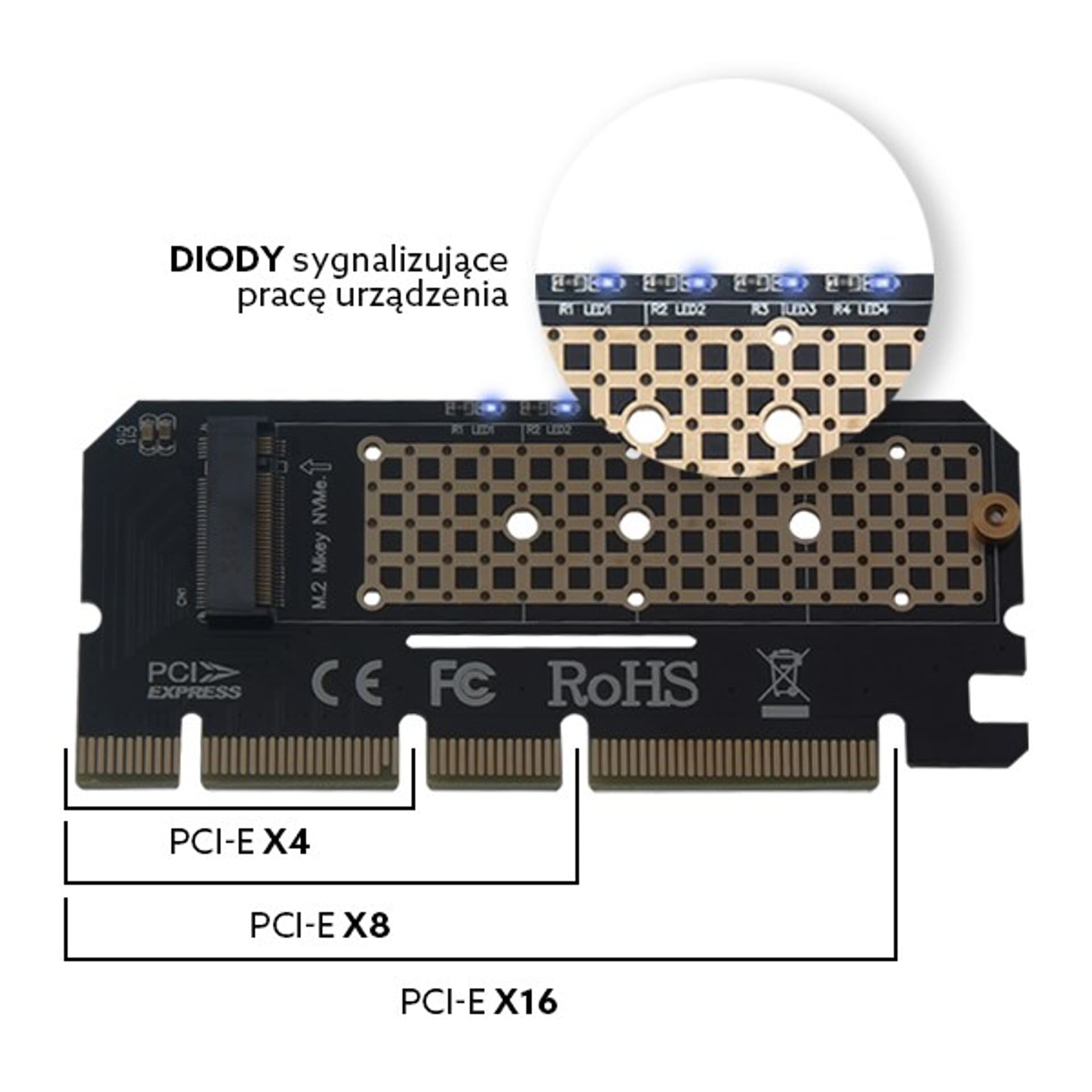

Supported PCI-E interfaces: PCI-E 4x, PCI-E 8x, PCI-E16x
Supported disk sizes: 2230, 2242, 2260, 2280
The motherboard must support NVMe for proper operation.
This SAVIO PCI Express card expands your personal computer by one M.2 slot.
This SAVIO PCI Express card expands your PC with one M.2 slot
Compatible with any operating system, no drivers are required for installation.
Case study: Mounting M.2 drives to the PCI-E expansion slot on the motherboard.
Package content
- SAVIO AK-41 expansion card
- 3x thermal pad
- Screwdriver
- User manual
- Secure screw
Device installation
- Place the right size of the thermal pad on the expansion card.
- Insert M.2 SSD disc to the socket located on the expansion card.
- Secure disc by screw which is added to the package content.
- Prepared set need to insert to the PCIe slot which is on the motherboard.
