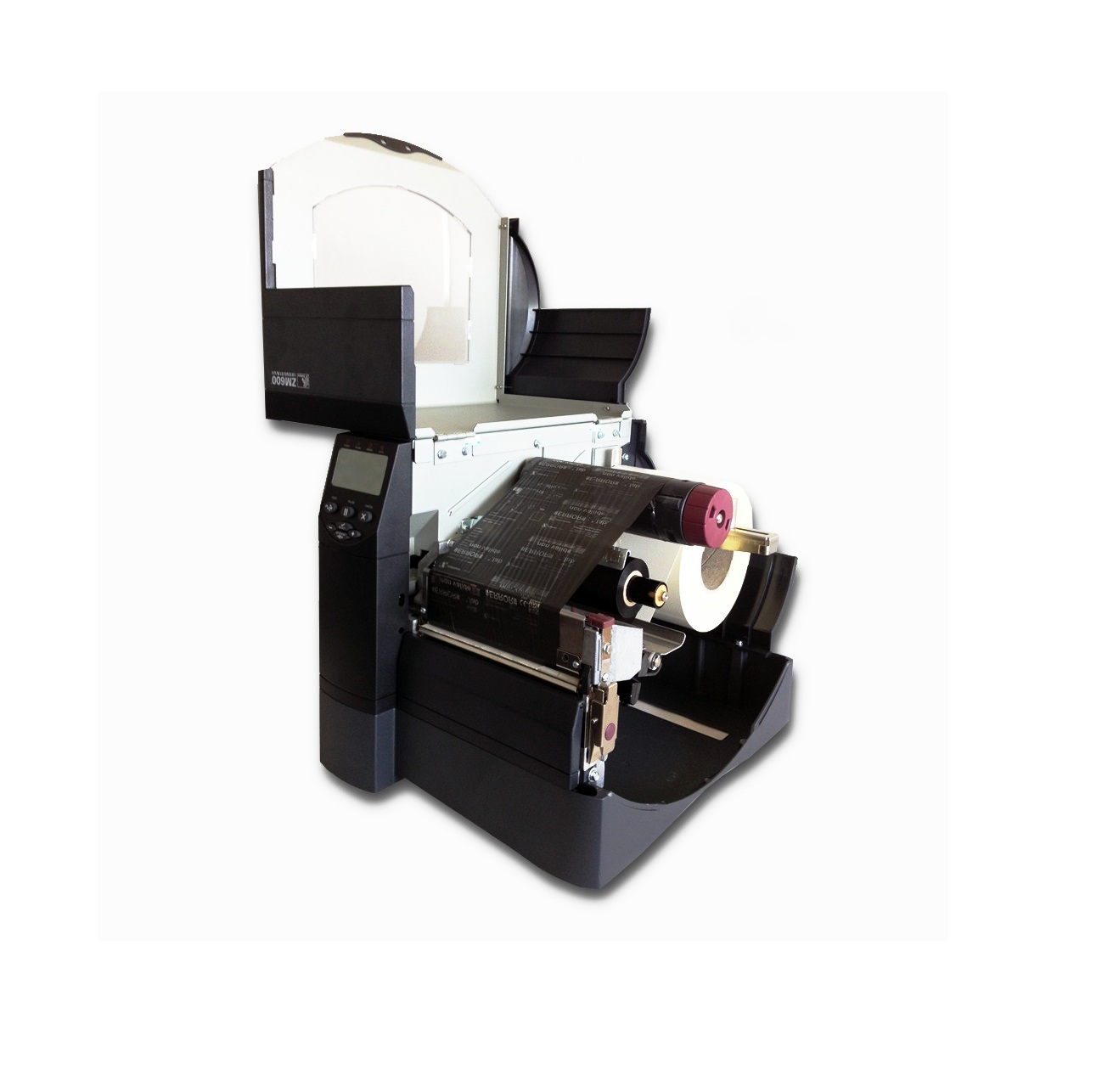

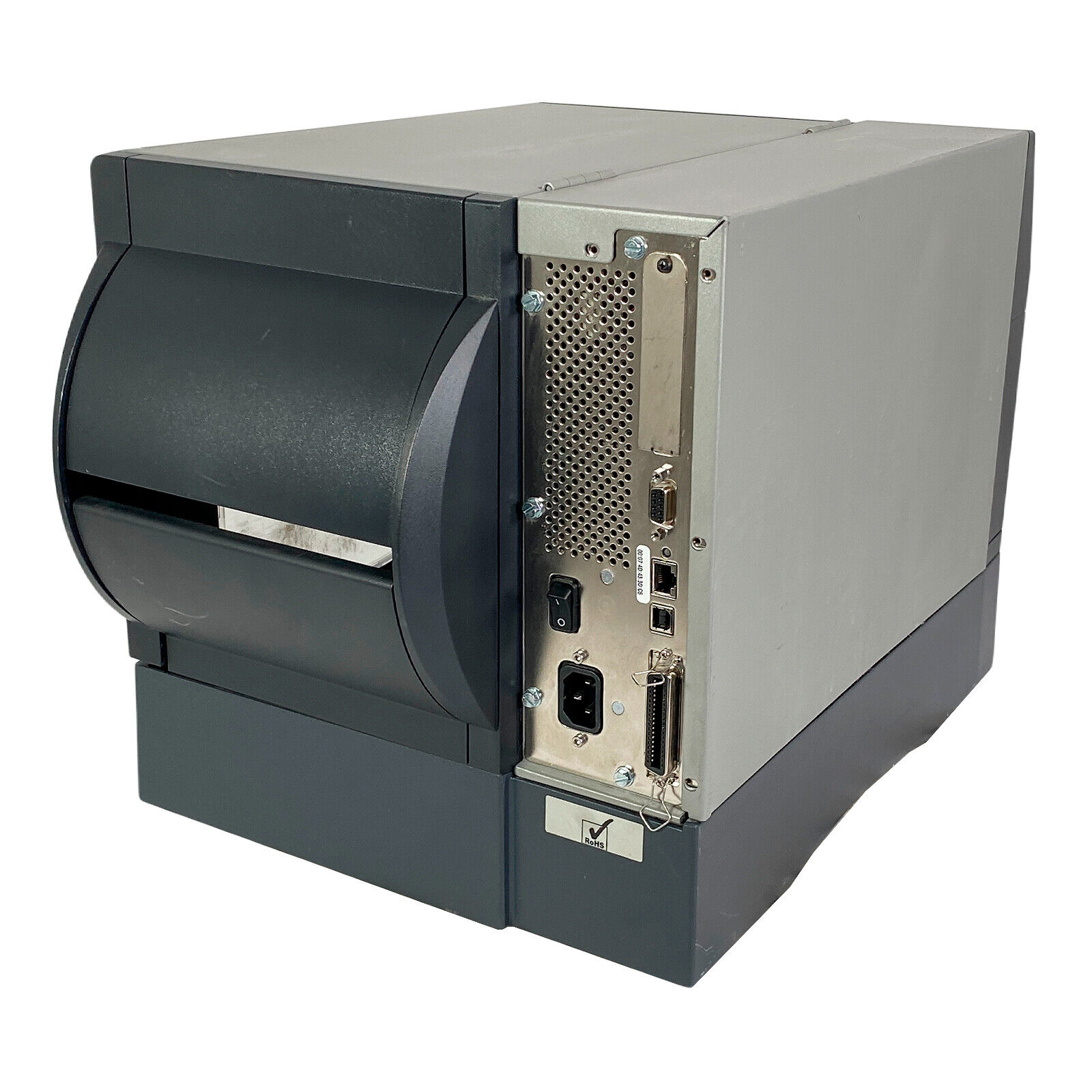

Индустриален етикетен принтер Zebra ZM600
Най-добрият клас принтери ZM600 е с подобрена продуктивност и модерна мрежова свързаност за по-лесно интегриране в повечето производства, складове и бизнес приложения.
Стандартни функции
Термотрансферен и директен термичен режим на работа (може да използва само един режим наведнъж)
Лята под налягане алуминиева основа, рамка и механизъм на печатащата глава
Метален носител с голям прозрачен прозорец
16 MB DRAM, 8 MB Flash
203 dpi (8 точки/mm) печатаща глава
Сериен интерфейс RS-232C
Високоскоростен, IEEE 1284, двупосочен паралелен интерфейс
USB 2.0
Пропускливи и отразяващи медийни сензори
Многоезичен графичен дисплей с подсветка 240?128 пиксела
Цветно кодирани сигнали на оператора
Готов за RFID
7 растерни и 1 мащабируем шрифт (CG Triumvirate Bold Condensed)
32-битов процесор
Автоматично калибриране
Автоматично откриваемо (90V – 265V) захранване
Element Energy Equalizer™ (E3®) (за контрол на енергията на печатащата глава)
Часовник в реално време
Unicode™ – Съвместим
Бърза смяна на печатащата глава и валяка
Въгленно сив дизайн на формата (за подобрена устойчивост на размазване)
ZPL® или ZPLII® (Zebra Programming Language®)
Zebra ZM600 спецификации
Printer Specifications
Resolution 203 dpi (8 dots/mm)
300 dpi (12 dots/mm)
Memory 16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Flash (optional)
Print width 6.6? (168 mm)
Print length Length with 203 dpi: 102? (2,591 mm)
Length with 300 dpi (optional): 45? (1,143 mm)
Print speed 203 dpi, 10? (254 mm)/sec
300 dpi, 8? (203 mm)/sec
Media sensors Reflective
Transmissive
Media Characteristics
Maximum label and liner width 7? (178 mm) – tear & cutter
6.75? (171 mm) – peel & rewind
Minimum label and liner width 2? (51 mm) – tear & cutter, peel & rewind
Maximum label and liner length 39? (991 mm)
Maximum roll diameter 8? (203 mm)
Core diameter 3? (76 mm)
Media thickness 0.0023? (.058 mm) to 0.010? (0.25 mm)
Media types black mark, continuous, die-cut, fanfold, notch, perforated, tag stock
Ribbon Characteristics
Outside diameter 3.2? (81.3 mm)
Standard length 1476? (450 m)
Ratio 3:1 media roll to ribbon ratio
Ribbon width 2? (51 mm) to 6.85? (174 mm)
Ribbon setup Ribbon wound ink side out
ID Core 1.0? (25.4 mm)
Operating Characteristics
Operating temperature TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal
Storage temperatures -40° F (-40° C) to 140° F (60° C)
Operating humidity 20-85% non-condensing
Storage humidity 5/85% non-condensing
Electrical Universal auto-detectable (PFC-compliant) power supply 90-265 VAC
Agency approvals IEC 60950-1 EN 55022 Class B
EN 55024
EN 61000-3-2
EN 61000-3-3
Physical Characteristics
Width 13.4? (341 mm)
Height 13.3? (338 mm)
Depth 18.7? (475 mm)
Weight 34.7 lbs (16 kg)
Shipping weight 54 lbs (24.5 kg)
Related Products
Options 300 dpi (12 dots/mm) printhead
64 MB Factory-Installed, On-Board Flash Memory (58 MB user available)
Cutter with catch tray
Value peel (front mount, passive peel option with no liner take-up)
Peel with liner take-up
Rewind, internally rewinds full label roll on three-inch core (comes with taller, non-standard printer base)
Ribbon supply spindle for ribbon ink coated inside
RFID Field Upgrade Kit
ZebraDesigner
ZebraDesigner Pro
ZebraDesigner for XML
ZebraNet Bridge Enterprise
Printhead conversion kits
ZebraCare Extended Warranty
European and Asian font sets
APL-I
APL-D
Communication and Interface Capabilities RS-232C serial port
RS 232 to RS-422/485 serial port adaptor
RS232 DB9 to DB25 adaptor
High speed, IEEE 1284, bi-directional parallel interface
ZebraNet Wireless Plus (optional)
ZebraNet 10/100 Print Server (internal/external)
ZebraNet PrintServer II (external option)
Programming Languages
Core programming languages XML, ZPL II, ZPL, EPL
Bar Codes/Symbologies
Linear Codabar
Code 11
Code 39
Code 93
EAN-13
EAN-8
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Planet Code
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-E
Code 128 with subsets A/B/C and UCC case codes
2-dimensional 2-dimensional
Aztec
Codablock
Code 49
Data Matrix
MaxiCode
MicroPDF417
PDF417
QR Code
RSS
Fonts and Graphics Standard fonts: 7 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
Sets: IBM Code Page 850 International character set
Optional European and Asian font sets
Supports user-defined fonts and graphics, including custom logos
ZPL II drawing commands, including boxes and lines
