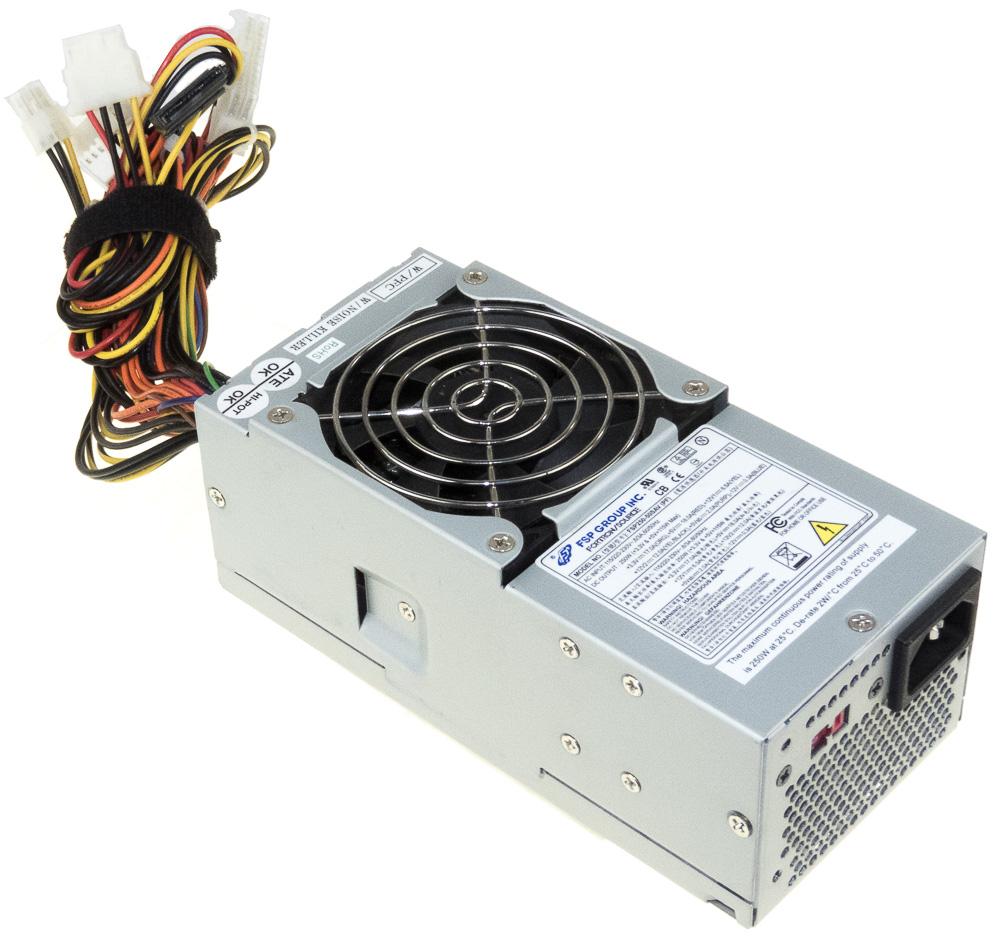

Features:
1. Output over voltage protection
2. Short circuit protection on all output
3. Three SATA Connections
4. Three 4-pin large power connector (4-pin)
5. One 24-pin ATX power connector
6. One 4-pin 12V P4 ATX power connector (4-pin)
7. One 4-pin Small power connector (4-pin )
8. With 4cm fan
Specifications:
1. Voltage : 90 to 264 VAC
2. Frequency : 47Hz to 63Hz
3. Input Current :5 amps maximum / 115 Vrms
3 amps maximum / 230 Vrms
4. Inrush Current : 50 amps cold, 80 amps warm measured at 230 Vrms
5. Remote ON/OFF Control:ThePusan accepts a logic signal in order enable or disable the DC output voltage, except for
6. Operating Temperature : 0? to +25? (250W) ; 0? to +50? (220W)
7. Storage Temperature : -20? to +80?
8. Relative Humidity : 5 to 95% RH
9. Hold-up Time : 17.0 ms minimum : at 115V / 60 Hz
10. Efficiency : 68% min. 115VAC at full load
11. Voltage : input / output 1800VAC for1 second, input to frame ground 1800VAC for 1 second
12. MTBF: 100,000 hours at full load at 25? ambient, calculated per MIL-HDBK-207F
Output:
Output Voltage Min. load Max. load Load Reg. Ripple & Noise
+5Vsb 0.0A 2.0A +-5% 100mV P-P
-12V 0.0A 0.5A +-10% 120mV P-P
+12V 1.0A 16.0A +-5% 120mV P-P
+5V 0.3A 20.0A +-5% 50mV P-P
+3.3V 0.5A 18.0A +-5% 50mV P-P
+3.3V &+5V total output not exceed 115W
+3.3V & +5V & +12V total output not exceed 236.4
